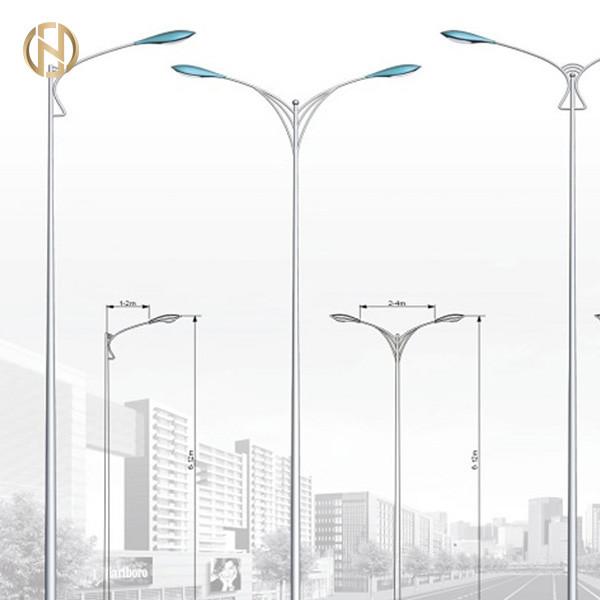

IP65 Galvanized 12M Single Arm Street Lighting Pole
Product Description
Any Size Height Solar Street Light Pole ,Hot Dip Galvanized Lamp Post Lamp Column
Our street lighting poles can be customized in various ways according to our clients’ requests. This includes pole length, spray painted colour, shape of the pole shaft, number and style of cross arms. Please refer to the table below for further details.
All of our material are purchased from famous mill factory to assure the quality
Specific Details
| Material | Q235 or Q355 or others |
| Lamp power | 20 W- 400 W (HPS/MH) |
| Torlance of the dimenstion | +- 2% |
| Optical assembly of lighting fixture | IP 65 |
| Electroshock resistant protective grade | Grade Ⅰ |
| The casing anti-corrosion performance | Class Ⅱ |
| Working atmosphere of lighting fixture | -35 ℃~+45 ℃ |
| Surface treatment | Hot dip galvanized Following ASTM A 123, color polyester |
| Joint of Poles | Insert mode,innerflange mode,face to face joint mode . |
| Design of pole | Against earthquake of 8 grade |
| Wind Speed | 160 Km/Hour |
| Minimum yield strength | 355 mpa |
| Minimum ultimate tensile strength | 490 mpa |
| Max ultimate tensile strength | 620 mpa |
| Standard | ISO 9001 |
| Length of per section | Within 14m once forming without slip joint |
| Welding | We has past flaw testing.Internal and external double welding makes
the welding |
| Thickness | 1 mm to 30 mm |
| Production Process | Rew material test → Cuttingj →Molding or bending →Welidng
(longitudinal )→ |
| Packages | Our poles as normal cover by Mat or straw bale at the top and
bottom , |
| Style | Size and styles are veriable as per customer request |
Production Flow
Verification of Materials → Cutting → Molding or Bending → Vertical
Welding → Verification of Dimensions → Flange Welding → Hole
Drilling → Calibration → Deburr Process → Galvanizing, Powder
Coating or Painting → Recalibration → Threading → Packaging
Packaging & Shipping
Our poles as normal cover by Mat or straw bale at the top and
bottom and wood between the poles to avoide the damage on the
galvanization of the pole ,anyway also can following by client
required , The loading capacity of 40HC or OT an be calulated
calculation base on the client actually specification and data.
FAQ
| Q1. How can I get a price of needed pole? |
A: 1. Please provide exact dimensions such as height, pole shaft
material type and thickness, top and bottom diameters. We can then
give you an accurate quotation based on your specifications. |
| Q2. I am a small wholesaler; do you accept a small order? |
| A: It's not a problem if you are a small wholesaler; we accept orders of various quantities. |
| Q3. I am a designer; Can you help me to produce the sample which we designed? |
| A: Our mission is to help our customers be successful. We are more than happy to help you solve any problems that you may have. |
| Q4: We want be your agent for our area. How do I apply for this? |
| A: Please send your proposal and your company profile. |
| Q5. Tell me about your company? |
| We have been a manufacturer and exporter of all kinds of steel poles including power poles, street lighting poles, telecommunications poles and other steel based products since 2000. Our products have been exported to many regions around the world. |
| Q6. Do you have some special policies for Branded companies? |
| A: Yes, we have some special support for the company who has own brand but are also in our VIP customers list. Please send us a copy of your sales data so we can analyze the best course of action in supporting you for your products in your market. |
| Q7. Do you provide Door to Door service? Because i don't know how to deal with customs clearance. |
| A: We provide Door to Door service to help you reduce shipping time and costs. This is because we have additional discounts with the shipping companies as we have done many shipments in the past. This in turn will save you lots of time and money. |
