| Brand Name : | FUTAO |
| Model Number : | QY-7 to QY-30 |
| Certification : | ISO 9001 |
| Price : | $1 - $8 |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 3000pcs one month |
| Delivery Time : | 30 workdays |

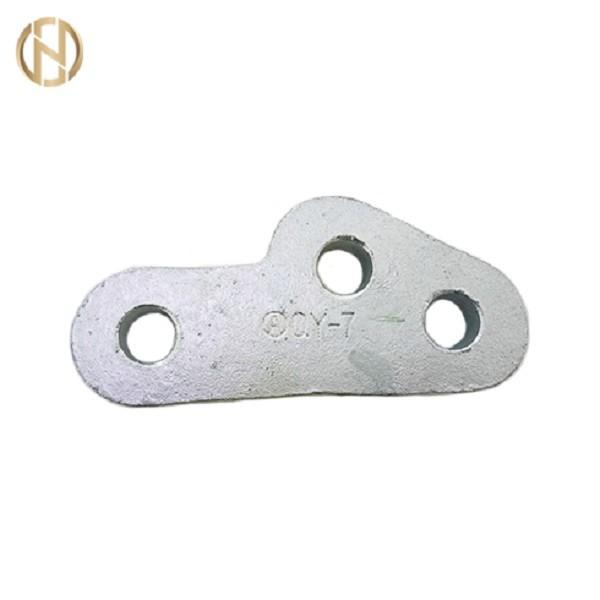

QY-7 to QY-30 QY Type Towing Plate for Electric Fitting pole accessories
QY type towing plate for electric fitting is used for assembly of
other fittings between tension insulator string & fixed end of beam
through series connection; it is suitable for towing tension
insulator string under stringing condition.
QY Type Towing Plate for Electric Fitting
| National Grid Type | No. 85 Standard Type | Dimension (mm) | Nominal Failure Load (kn) | ||||
| B | Φ | H | L1 | L | |||
| PQ-07100 | QY-7 | 16 | 18 | 22 | 38 | 100 | 70 |
| PQ-10120 | QY-10 | 16 | 20 | 25 | 42 | 120 | 100 |
| PQ-12150 | QY-12 | 16 | 24 | 30 | 52 | 150 | 120 |
| PQ-16180 | QY-16 | 18 | 26 | 35 | 55 | 180 | 160 |
| QY-20 | 26 | 30 | 45 | 75 | 200 | 200 | |
| PQ-21200 | 20 | 26 | 45 | 75 | 200 | 210 | |
| QY-25 | 30 | 33 | 50 | 85 | 220 | 250 | |
| PQ-25220 | 24 | 30 | 50 | 85 | 220 | 250 | |
| QY-30 | 32 | 39 | 57 | 95 | 240 | 300 | |
| PQ-32240 | 28 | 33 | 57 | 95 | 240 | 320 | |
| PQ-42260 | 32 | 39 | 70 | 100 | 260 | 420 | |
|
|
