“Quality and Integrity over all else”
6 Years
| Ask Lasest Price | |
| Brand Name : | FUTAO |
| Model Number : | FT-PA100 |
| Certification : | ISO 9001 |
| Price : | $1-$40 |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 10000 pieces every month |
| Delivery Time : | 30 - 60 workdays |

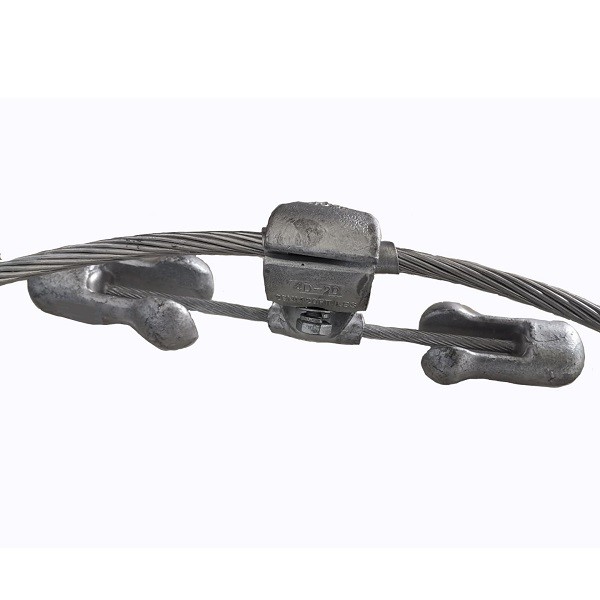

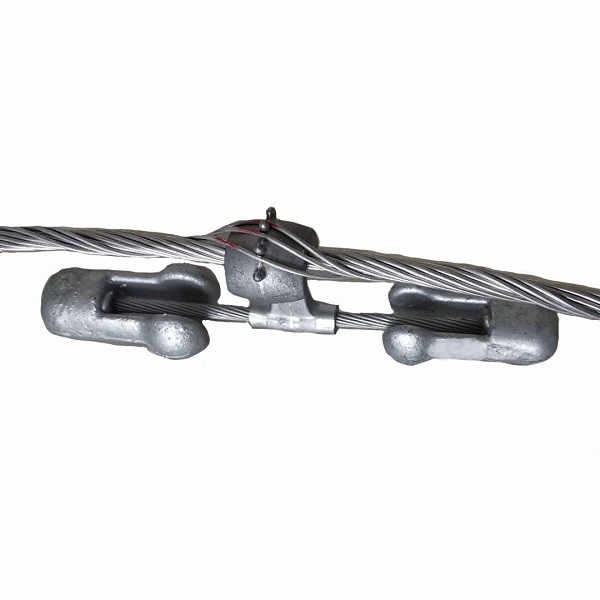

Product Name | Vibration Damper |
Material | Galvanized |
Application | Overhead Power Line Fitting |
Size | Customized Sizes Acceptable |
Service | OEM Services |
Certificate | ISO9001:2008 |
Delivery | 7-15 days according to the quantity |
Sample | Available |
When cable suffers form aeolian vibration, the hammerhead of the vibration damper hanging on the cable may vibrate freely along with the movement of cable to make the steel stranded wires on anti- vibration damper rub each other,convert the vibration energy passed on to the anti- vibration damper to friction heat among steel standed wires and consume such heat energy,thereby effectively supperessing the aeolian vibration of cable and prolongthe life of cable.
| TYPE | Application OPGW | Remark |
| 4D-20-16.0 | 7.3-10.0mm | Complete with protective rods |
| 4D-20-20.3 | 10.5-14.3 | Complete with protective rods |
| 4D-20-23.4 | 13.5-17.4 | Complete with protective rods |
| 4D-30-23.4 | 13.5-17.4 | Complete with protective rods |
| 4D-30-27.0 | 17.4-21 | Complete with protective rods |
OPGW Span (MM) | Number | Remark |
0-100 | 0 | Symmetric distribution span both sides |
101-250 | 2 | Symmetric distribution span both sides |
251-500 | 4 | Symmetric distribution span both sides |
501-750 | 6 | Symmetric distribution span both sides |
751-900 | 8 | Symmetric distribution span both sides |
Packaging & Shipping
We pack the top and bottom parts of the pole with a mat or straw
bale in order to protect it from damage to the galvanized surface
that may occur during transportation.
Packaging can also be done according to clients’ requirements.
We can ship the poles by sea or air or express or trains and we
have our regular shipping agent.
FAQ
Trade terms:
1. Price Term: EXW,FOB,CFR,CIF,FCA or others.
The price includes pole shaft, base plate, cross arm and anchor
part.
2. Payment: 30%T/T in advance,70%T/T or L/C at sight before
shipment. Other payment way can be negotiated.
3. Package: Plastic woven bag or old blanket or according to
clients requirement.
4. Delivery time: within 30-60 workdays after receiving deposit.
| Q1. How can I get a price of needed pole? |
A: 1. Please provide exact dimensions such as height, pole shaft
material type and thickness, top and bottom diameters. We can then
give you an accurate quotation based on your specifications. |
| Q2. I am a small wholesaler; do you accept a small order? |
| A: It's not a problem if you are a small wholesaler; we could accept orders of various quantities. |
| Q3. I am a designer; Can you help me to produce the sample which we designed? |
| A: Our mission is to help our customers be successful. We are more than happy to help you solve any problems that you may have. |
| Q4: We want be your agent for our area. How do I apply for this? |
| A: Please send your proposal and your company profile.It will be better if we can know the estimated purchase quantity of every year. |
| Q5. Tell me about your company? |
| We have been a manufacturer and exporter of all kinds of steel poles including power poles, street lighting poles, telecommunications poles and other steel based products since 2000. Our products have been exported to many regions around the world. |
| Q6. Do you have some special policies for Branded companies? |
| A: Yes, we have some special support for the company who has own brand but are also in our VIP customers list. Please send us a copy of your sales data so we can analyze the best course of action in supporting you for your products in your market. |
| Q7. Do you provide Door to Door service? Because i don't know how to deal with customs clearance. |
| A: We provide Door to Door service to help you reduce shipping time and costs. This is because we have additional discounts with the shipping companies as we have done many shipments in the past. This in turn will save you lots of time and money. |
Our Service
1. We will reply all your enquiries in 12 working hours.
2. Experienced staff members will answer all your questions in
fluent English.
3. We have experienced and professional design team.
4. Exclusive and unique solutions can be provided to our customers
by our well-trained and professional engineers and staff.
5. Special discount or comission and protection of sales are
provided to our distributors.
6. State of the Art Factory with highly specialized machinery
focused on producing various types of steel poles with over 20
years of experience and expertise to deliver you quality products
that you can trust at competitive prices.
7. We have our own inspection team to control the quality.
|
|
