| Brand Name : | FUTAO |
| Model Number : | HBG 070 125-325 |
| Certification : | ISO 9001 |
| Price : | $1 - $9 |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 3000pcs one month |
| Delivery Time : | 30 workdays |

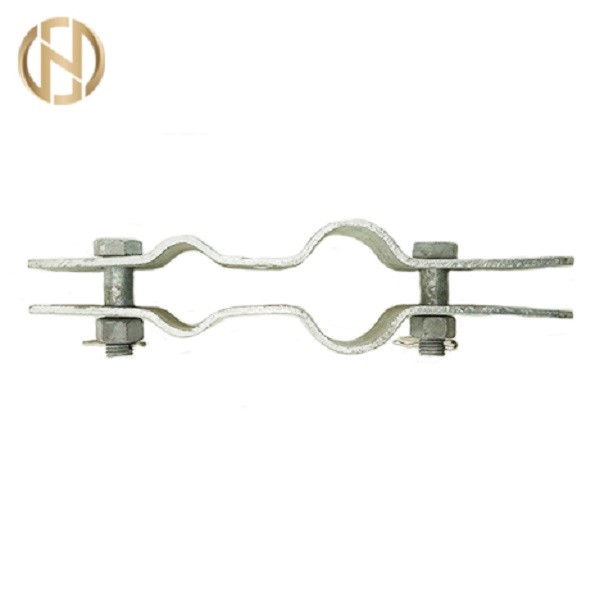

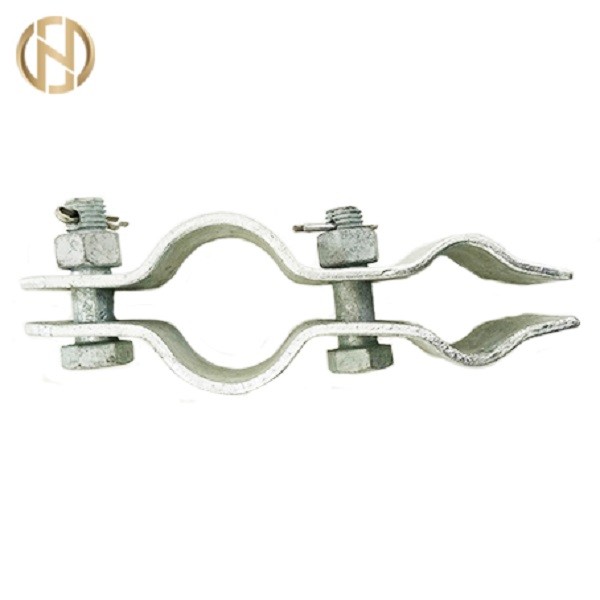

galvanized fastening clamp for ADSS and OPGW cable HBG 070 125-325
galvanized fastening clamp for ADSS and OPGW cable
The fastening clamp could fix or connect different clamps on the steel tower or pole. It has pole type and tower type according to the lines characteristics. The tower type is metal splint, it fixs different clamps on the iron town without damage of iron tower strength. Pole type is hold hoop. Tension splint is used for corner tower or terminal tower, it provides hangings point to ADSS optical cable erection. The straight splint is used for tangent tower, it provides hanging point to ADSS optical optical cable. The hold hoop fix the strain clamp and suspension clamp on the pole, and provide hanging point to ADSS optical cable erecction.
| Type | Diameterof fixing locations | Weight | Devastating Load(kn) |
| HBG 070 125 | 101-125MM | 2.3 | 70 |
| HBG 070 150 | 126-150MM | 2.5 | 70 |
| HBG 070 175 | 151-175MM | 2.7 | 70 |
| HBG 070 200 | 176-200MM | 2.9 | 70 |
| HBG 070 225 | 201-225MM | 3.2 | 70 |
| HBG 070 250 | 226-250MM | 3.4 | 70 |
| HBG 070 275 | 251-275MM | 4.0 | 70 |
| HBG 070 300 | 276-300MM | 4.2 | 70 |
| HBG 070 325 | 301-325MM | 4.4 | 70 |
|
|
