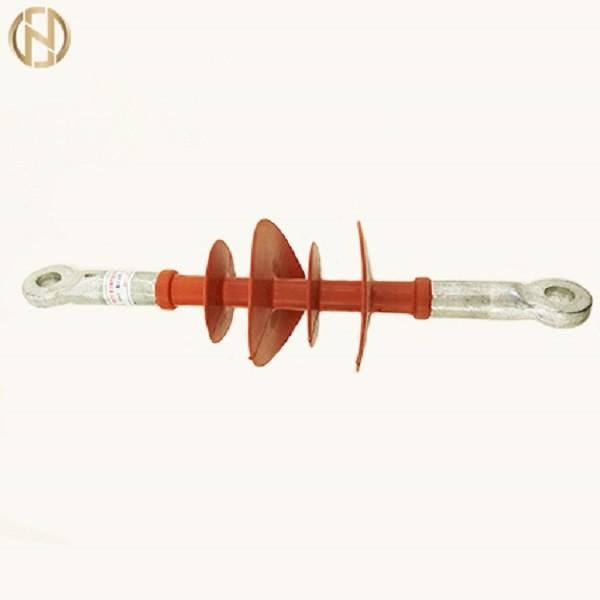

Long Rod Suspension Silicon Rubber 120KN 24KV FXBW Insulator
Pin Insulator is special for badly polluted areas, high mechanical tension load, long span and compact power line.They have feature of light weight, small volume, unbreakable, anti-bend, high strength for anti-twist and strong explosion protection.
Core rod: made of FRP rod or ECR rod
Sheds: made from high quality HTV silicone rubber, through high pressure injection moulding techniques to create a smooth surface
End fittings: various pin end fittings made of hot dip galvanized cast steel
Properties & Advantages(the reason to buy!):
1. superior bending and tensile strength
2. electric corrosion resistance
3. excellent corona resistance
4. high pollution resistance
5. superior hydrophobicity/anti-water performance
6. aging resistance
7. anti-leakage trace
8. anti-ipulse property
9. shaking-proof
10. Good brittleness-proof property
11. light weight, convenient installation.
Technical parameter:
| FXBW-36/70 | Numerical value | Unit |
| Rated voltage | 24 | KV |
| Rated mechanical bending load(KN) | 70 | KN |
| Structure Height H | 425 | mm |
| Minimum creepage distance Power | 575 | mm |
| insulating distance Li. | 230 | mm |
| Diameter of shed D | 88 | mm |
| Lightning impulse withstand voltage(peak) | 125 | KV |
| P.F frequency Wet withstand voltage(virtual value) | 65 | KV |
|
|
