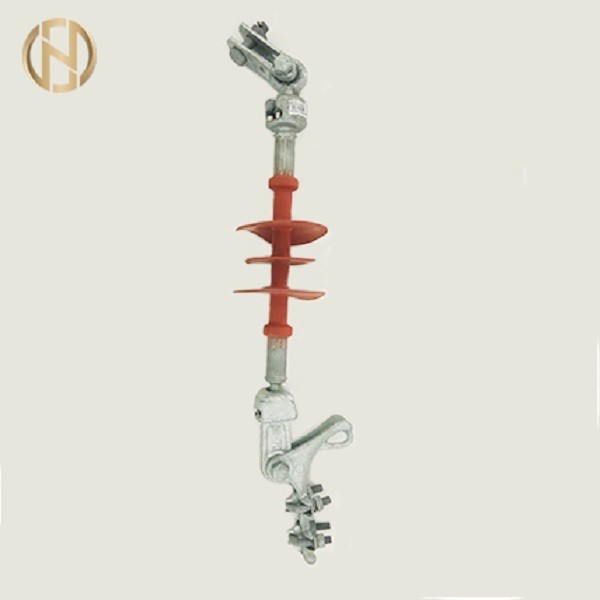

11-35kV Composite windproof deviation insulator sub-unit pole accessories

Installation:

1. The windproof and partial composite insulators should be handled gently during transportation and installation to avoid collision and friction with miscellaneous pieces and sharp objects.

2. When lifting, the knot should be hit on the end attachment. It is strictly forbidden to hit the umbrella skirt or sheath. When the rope must touch the umbrella skirt and the sheath part, it should be wrapped with soft cloth in the contact part;

3. The windproof partial composite insulator should not be used as an auxiliary tool for the discharge (receiving) line, so as not to damage the insulator due to impact or bending moment;

4. It is strictly forbidden to step on the insulator umbrella skirt;

5. When installing the equalizing ring, make the ring perpendicular to the axis of the insulator. For the open type equalizing ring, pay attention to the same direction of opening at both ends to facilitate discharge and protect the umbrella skirt;

Pin Insulator is special for badly polluted areas, high mechanical tension load, long span and compact power line.They have feature of light weight, small volume, unbreakable, anti-bend, high strength for anti-twist and strong explosion protection.

Components:

Our company focuses on manufacturing all kinds of metal poles. This includes steel power poles, street lamp poles, telecommunication poles and many more. Futao Metal Structures was founded in 2000 with one goal in mind - to provide quality products that you can count on. Since then, we have accumulated 18 years of experience in international trade while our products have been used in construction projects all over the world. We are committed to living by our company motto “Quality and Integrity above all else”.

We have deep technical knowledge in the field of power distribution, advanced production equipments and experienced staff. We strive to provide the best quality in all our products. Over the years, we have developed good relationships with customers from all over the world including southeast Asia, the Middle East, America and Africa.
