| Brand Name : | FUTAO |
| Model Number : | JNE-101 to JNE 411 |
| Certification : | ISO 9001 |
| Price : | $1 - $12 |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 3000pcs one month |
| Delivery Time : | 30 workdays |
PT Type Adjusting Plate Used for Connection Link plate pole accessories
PT type adjusting plate is exclusively used for twin-connected
rotation angle insulator string & tension insulator string. On
usage, the adjustment of length to adjusting plate depends upon the
rotation angle of angle tower to calculate the distance length
between the two suspending points subjected to insulator string.

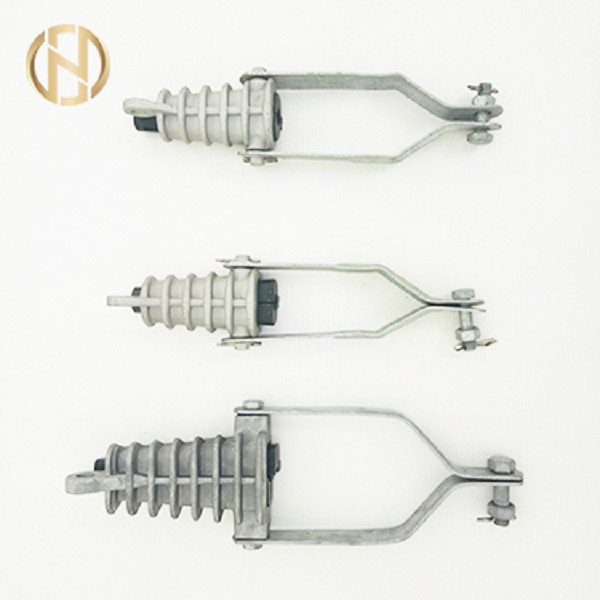

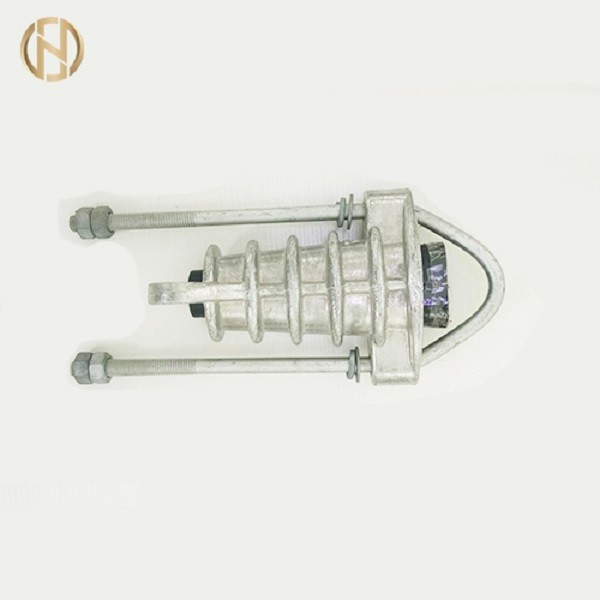

JNE type insulation strain clamp is suitable for fixing & tightening aerial insulation conductor to the tensioning insulator string at the corner termination pole or two ends of the tensioning part, and they are classified as 1KV and 10KV two kinds. The body made of steel & outer figure is of wedge type incoming hole made of stainless steel as seal cover, with high strength well clip & east installation.
| Type | Inside Wedge Clamping Range (mm) | Nominal Section of Area Wire (mm2) | Nominal Failure Load (kn) | |
| JKLYJ-1KV | JKLYJ-10KV | |||
| JNE-101 | Φ 7~Φ 9.5 | 16~25 | - - | 11.0 |
| JNE-102 | Φ 9.5~Φ 12.0 | 35~50 | - - | |
| JNE-103 | Φ 12.0~Φ 14.0 | 70 | 16~25 | |
| JNE-104 | Φ 12.5~Φ 15.0 | - - | 35 | |
| JNE-205 | Φ 14.0~Φ 16.5 | 95 | 50 | 22.0 |
| JNE-206 | Φ 15.5~Φ 18.0 | 120 | 70 | |
| JNE-207 | Φ 17.5~Φ 20.0 | 150 | 95 | |
| JNE-308 | Φ 19.0~Φ 21.5 | 185 | 120 | 28.0 |
| JNE-300 | Φ 20.5~Φ 23.0 | - - | 150 | |
| JNE-410 | Φ 22.0~Φ 24.5 | 240 | 185 | 45.0 |
| JNE-411 | Φ 24.0~Φ 26.5 | - - | 240 | |
|
|
