| Brand Name : | FUTAO |
| Model Number : | ZBS |
| Certification : | ISO 9001 |
| Price : | $1 - $8 |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 3000pcs one month |
| Delivery Time : | 10 workdays |

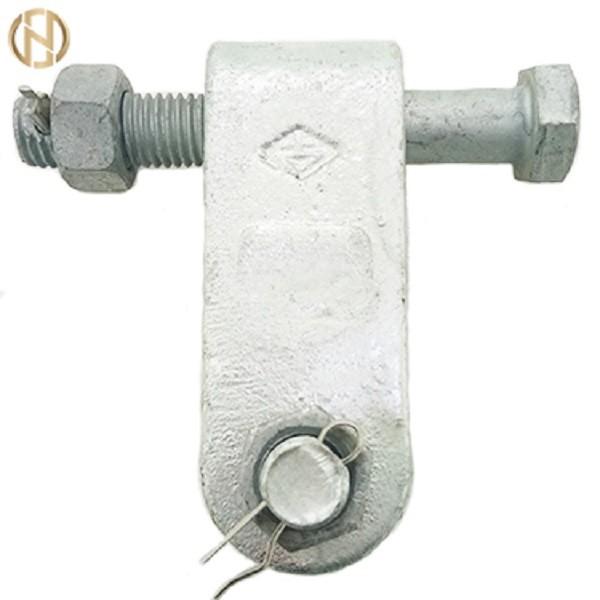

ZBS Type Clevis Used for Electric Equipment Ploe accessories
ZBS type clevis is mainly suitable for hanging suspension insulator
string (composed of suspension insulator & suspension clamp) on the
conductor subjected to the pole or tower; on the other hand, they
are also used for hanging tension insulator string (composed of
suspension insulator & tension clamp) on the tension conductor
subjected to the pole or tower.
ZBS Type Clevis used for Electric Equipment
| Type | Dimension (mm) | Nominal Failure Load (kn) | ||||
| L | H | C | M1 | M2 | ||
| ZBS-07/10-80 | 45 | 80 | 20 | 18 | 16 | 70 |
| ZBS-10/12-100 | 60 | 100 | 20 | 22 | 18 | 100 |
| ZBS-10/21-100 | 60 | 100 | 20 | 24 | 18 | 100 |
| ZBS-12/16-100 | 60 | 100 | 20 | 24 | 22 | 120 |
| ZBS-16/21-100 | 80 | 100 | 22 | 24 | 24 | 160 |
| ZBS-21/42-100 | 100 | 100 | 24 | 36 | 24 | 210 |
| ZBS-25/42-100 | 100 | 100 | 28 | 36 | 27 | 250 |
| ZBS-32/42-100 | 100 | 100 | 32 | 36 | 30 | 320 |
|
