7M Galvanized Street Light Pole / Steel Lamp Post / Street Lamp Pole
Product Specifications
| Height | 7M or custom |
| Apply in | Highway, freeway, Airport ,seaport,plaza,stadium,square,highway,street way etc |
| Shape | Conical, octagonal, square, cylinder |
| Material | Usually Q345B/A572, Q235B/A36, Q460 ,ASTM573 GR65, GR50 ,SS400, SS490, ST52 |
| Lamp power | 20 W- 400 W (HPS/MH) 220 |
| Tolerance | ± 2% |
| Optical assembly of lighting fixture | IP 65 |
| Electroshock resistant protective grade | Grade one |
| The casing anti-corrosion performance | Class two |
| Working atmosphere of lighting fixture | -35 °C~+45 °C |
| Surface treatment | Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required. |
| Joint of Poles | Insert mode,inner flange mode,face to face joint mode |
| Design of pole | Against earthquake of 8 grade |
| Wind Speed | 160 Km/Hour |
| Minimum ultimate tensile strength | 490 mpa |
| Max ultimate tensile strength | 620 mpa |
| Standard | ISO 9001 |
| Length of per section | Within 12m once forming without slip joint |
| Welding | We has past flaw testing.Internal and external double welding makes the welding beautiful in shape Welding Standard :AWS ( American Welding Society ) D 1.1 |
Thickness | 3~20mm |
Packages | Our poles as normal cover by Mat or straw bale at the top and bottom ,anyway also can following by client required , each 40HC or OT can loading how many pcs will calculation base on the client actually specification and data. |
Style | Size and styles are veriable as per customer requestManufacture Process |
Packaging & Shipping

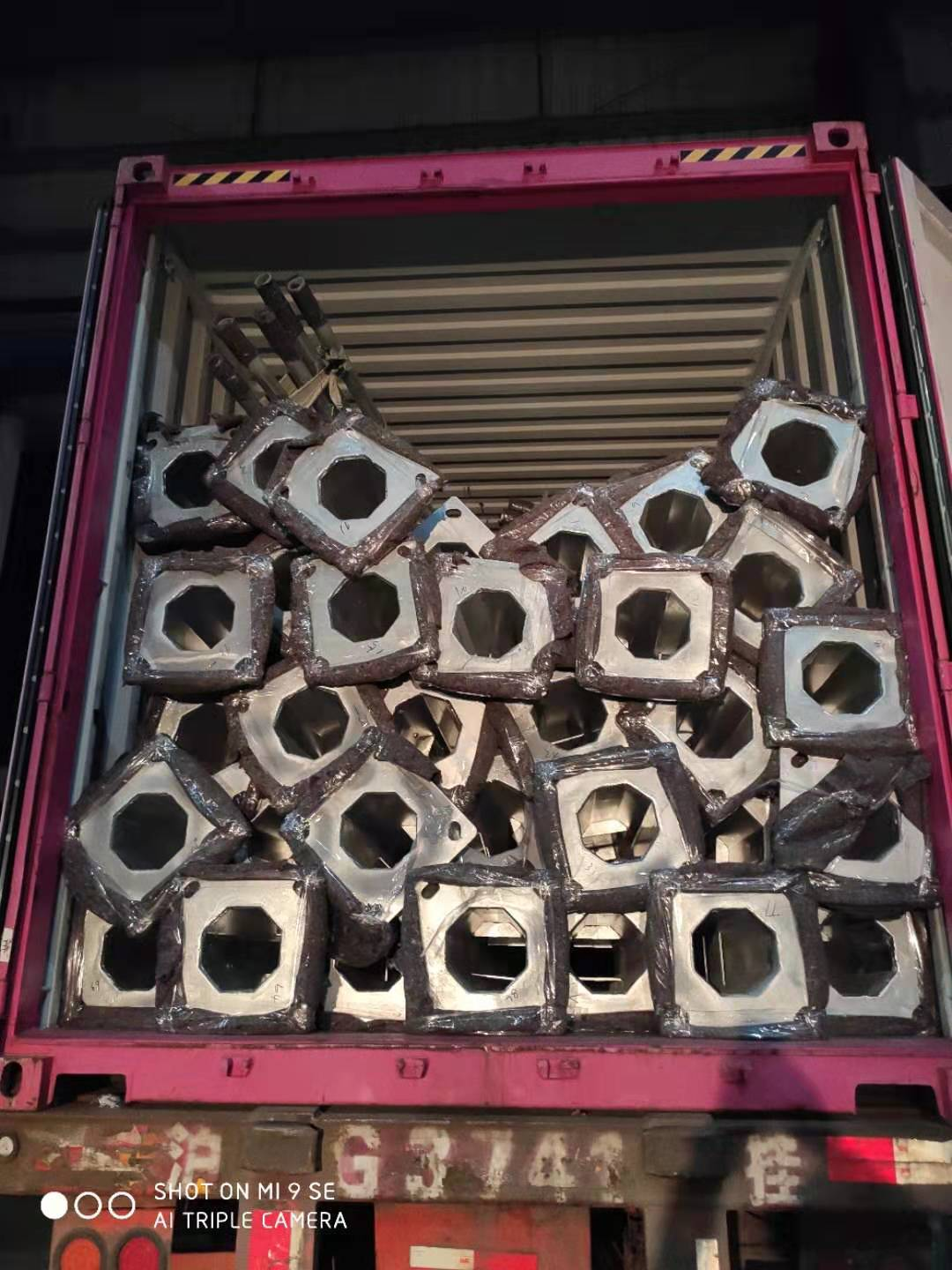

We pack the top and bottom parts of the pole with an old blanket in order to protect it from damage to the galvanized surface that may occur during transportation.
Packaging can also be done according to clients’ requirements,such as plastic bubbles or with wooden stick between each layer.
Process of Production
Verification of Materials → Cutting → Molding or Bending → Vertical Welding → Verification of Dimensions → Flange Welding → Hole Drilling → Calibration→ Deburring Process → Galvanizing, Powder Coating or Painting → Recalibration → Threading → Packaging
