| Brand Name : | FUTAO |
| Model Number : | 132kv 138kv |
| Certification : | ISO 9001 : 2008 |
| Price : | $100 - $400 |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 1200 pieces every week |
| Delivery Time : | 15 - 30 workdays |

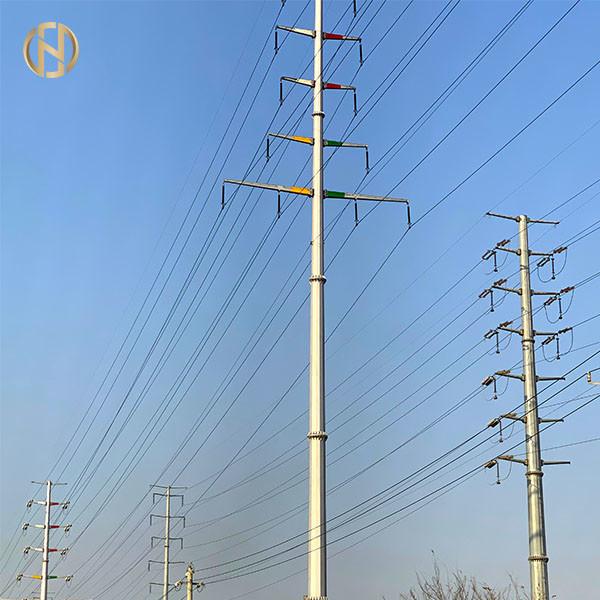

Moroto 132kV Electricity Transmission Line Project suspension type,Tension type, galvanized and powder coating
Product Description
Our electrical poles are specifically designed for Moroto 132kV Electricity Transmission Line Project suspension type,Tension type. We have successfully delivered our products to satisfied customers all around the world including Southeast Asia, the Middle East, and Europe. In addition, we can produce various types of poles depending on its usage such as suspension, tension and terminal/dead angle poles.
Specifical Details
| ITEMS | PART NO | REFER DRAWING REQURIMENT |
| 846601 | 001 | Route map of the line |
| 846601 | 002 | Telescopic pole Suspension Type”SS” |
| 846601 | 003 | Telescopic pole Tension Type”TL” |
| 846601 | 004 | Telescopic pole Tension Type”TM” |
| 846601 | 005 | Telescopic pole Tension Type”TH” |
| 846601 | 006 | Typical Foundation for good Soil |
| 846601 | 007 | Typical Foundation for poor and submerged soil |
| 846601 | 008 | Typical Tension Set for OPGW |
| 846601 | 009 | Typical Suspension Set for OPGW |
| 846601 | 010 | Typical Shield wire Tension Set |
| 846601 | 011 | Typical shield wire Suspension Set |
| 846601 | 012 | Typical Single Tension Insulator String |
| 846601 | 013 | Typical Double Tension insulator String |
| 846601 | 014 | Typical Suspension Insulator String |
| 846601 | 012 | Typical Jumper Insulator String |
| 846601 | 013 | Typical Grounding for drilled Shaft Foundation |
| 846601 | 014 | Typical Grounding for Pad& Chimney Foundation. |
Additional Details
Design Code: American Standard ASCE/SEI 48-11
Design Software: PLS-POLES
Export Market Coverage: Asia-Pacific, Central & South America, Europe, Middle East, Africa
Testing Process: Loading Tests may be conducted on factory site if required
Process of Production
Verification of Materials → Cutting → Molding or Bending → Vertical Welding → Verification of Dimensions → Flange Welding → Hole Drilling→ Calibration → Deburring Process → Galvanizing, Powder Coating or Painting → Recalibration → Threading → Packaging
Product Details
Testing
Packaging & Shipping
We cover the top and bottom parts of the pole with a mat or straw bale in order to protect it from damage to the galvanized surface that may occur during transportation. Packaging can also be done according to clients’ requirements.
|
|
