| Brand Name : | Futao |
| Model Number : | FTGG |
| Certification : | ISO 9001 2015 |
| Price : | 1000-10000USD Per set |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 3000 ton per month |
| Delivery Time : | 30days |
Description of products
These are high mast lighting poles designed for export to Argentinia. Please contact customer support to get a price quotation today!
Prroduct Details

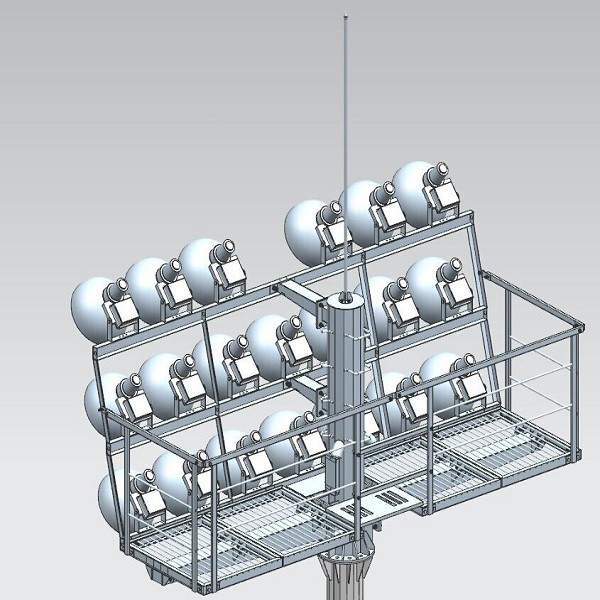

These high mast lighting poles will use a high pressue sodium lamp and led flood light to iluminate large areas of space. Perfectly suited for aeas such as stadiums, football fields, highways, airport runways and so forth. Poles ae 15 to 40 meters in height with a galvanization thickness of 80-100μm. Pole shape can be designed as per clients' requirements. Standard pole shapes include conical, polygonal, and round. Furthermore, the lifting mechanism can either be automatic or manual.
| Material | ASTM GR65,GR50,Q460 A572,S355,Q345/Q235 |
| Design Wind | 100KM/H or depending on clients’ request |
| Lamp Crown Shape | Single Face illuminated |
| Pole’s shape | Conical, Polygonal, Round |
| Application | Areas that require a large area of lighting (airports, shipping terminals, stadiums, heavy-industry zones) |
| Height | 15-40M composed of two or three sections |
| Pole Shaft Thickness | 8mm,10mm,12mm,14mm |
| Surface treatment | Hot Dip Galvanization, Electrostatic Spray |
| Components | Lighting Fixture, Lamps, Pole, Power Cabinet |
| Power Cabinet | Power Cabinet installed at inside door of high mast,or outdoor in separately. |
| Lamp Fixture Design | According to lighting requirements of the surrounding area |
| Lamp Fixture | LED,HID,HPS Etc |
| Galvanization Thickness | 80-100 microns on average according to BS EN ISO1461 standards |
| Joint Type(Connection method) | Slip joint by upper section insert into lower section |
| Flange connection to flange(outer flange/inner flange) | |
| Climbing Ladder | Inner Climbing Ladder |
| Outer Climbing Ladder | |
| Minimum yield strength | 355 Mpa |
| Minimum ultimate tensile strength | 490 Mpa |
| Max ultimate tensile strength | 620 Mpa |
| Length of per section | Within 14m once forming without slip joint |
| Welding | We has past flaw testing.Internal and external double welding makes
the welding beautiful in shape Welding Standard :AWS ( American Welding Society ) D 1.1 |
| Welds slags removing | Burrs or sharp edges shall be removed,all welds shall be cleaned mechanically against slag and spatters before hot dip galvanizing. |
Production Process
Verification of Materials → Cutting → Molding or Bending → Vertical
Welding → Verification of Dimensions → Flange Welding →
Hole Drilling → Calibration → Deburring Process → Galvanizing,
Powder Coating or Painting → Recalibration → Threading → Packaging
Product Details
Testing
Packaging & Shipping
All products are packed nicely and safely as to prevent damage to
the outside surface of our precious products.
FAQ
Trade terms:
1. Price Term: EXW,FOB,CFR,CIF,FCA or others.
The price includes pole shaft, base plate, cross arm and anchor
part.
2. MOQ: 1 sets.
3. Payment: 30%T/T in advance,70%T/T or L/C at sight before
shipment. Other payment way can be negotiated.
4. Package: Plastic woven bag or old blanket or according to
clients requirement.
5. Delivery time: within 30-60 workdays after receiving deposit.
Our Service
| Q1. Why choose us? |
| A: We offer high quality products at competitive prices. Furthermore, we allow for flexible payment terms. |
| Q2. How do you ship the goods and how long does it take to arrive? |
| A: We ship through the Shanghai port and it will take 2 weeks on average from the date of order. |
| Q3. How do I place an order for High Mast Lighting Pole? |
| A: Please provide specific details and requirements to us and we will proceed to give you an accurate price quotation. |
| Q4. Is it OK to print my logo on Led Light product? |
| A: Yes. Please inform us formally before our production begins and confirm the design first based on our sample. |
| Q5. How do I deal with faulty components? |
| A: Our products go through a rigorous quality control phase to prevent any defects or faulty components. However, during the guarantee period, we will send new lights for smaller quantities. For defective batch products, we will repair them and resend them to you or discuss an appropriate solution with you depending on the situation. |
