Suspension Clamp

Product Description

KW-922 Series

The suspension clamp is designed for the installation and suspension of four core self-supporting LV-ABC cables to poles or walls.

For suspension clamp of LV ABC cables in an insulated messenger wire system (IMWS) with standard hook installation. Easy to install without tools. The messenger is placed to the groove and locked with the locking part. Clamp equipped with wear protection plate.

Technical Specification

Dimensions

Cable Size:4*16-95mm² or Bus diameter < = 45mm

Mechanical

Breaking Load:11KN

Specification

Construction:UV resistant plastic

Installation: Messenger wire is installed into the groove and locked with the locking part.

Tools required: No tools required

Standard:NFC 33-042; EN 50-483

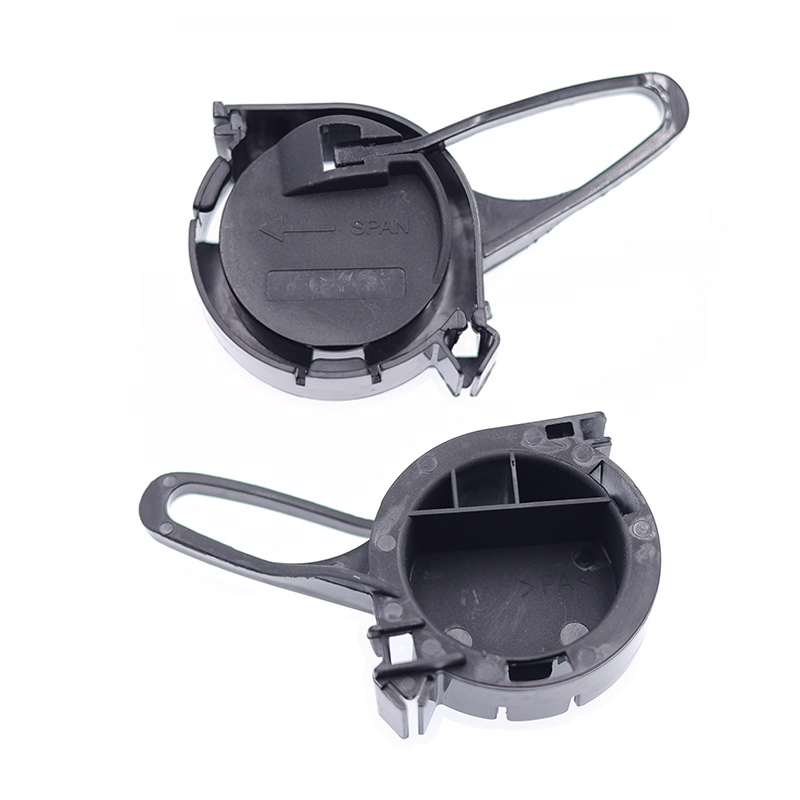

ACC Series

Code: ACC
Name: Tension Clamp for Drop Wire
Weight:45g
Description:Tension clamp for drop wire is composed of a mandrel shaped body and an opened bail that can be locked into the clamp body. It is made out of UV resistant nylon.

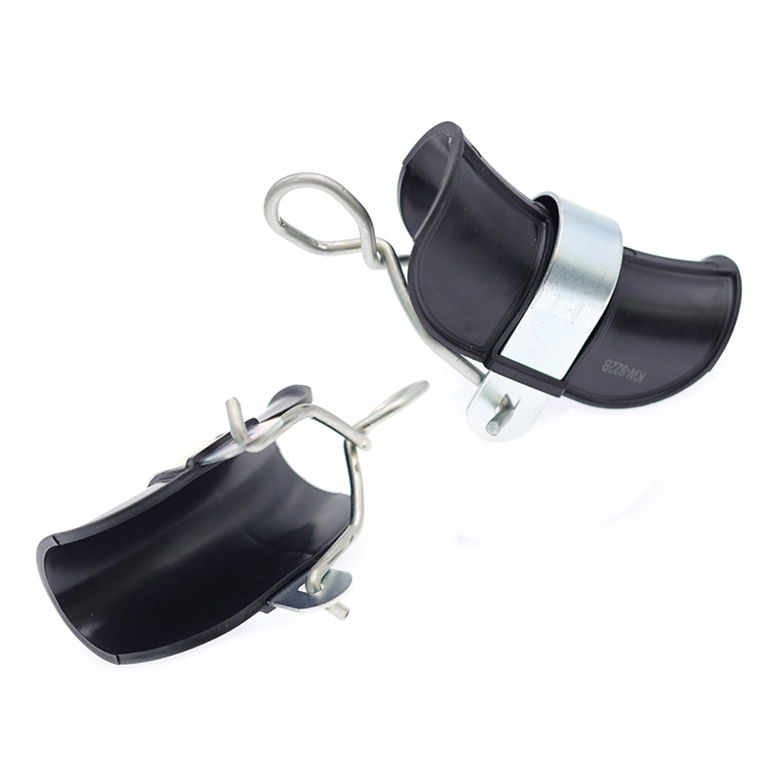

PS Series

The PS suspension clamp is designed for the installation and suspension of four core self-supporting LV-ABC cables to poles or walls.

-The clamp is made of hot-dip galvanized steel and weather resistant material

-Equipped with shear head bolt. The clamp can be easily installed without damaging to the cable jacket -No loose parts

-Standard: EN 50483-2
