| Brand Name : | FUTAO |
| Model Number : | FTGG - 0 38 917 |
| Certification : | ISO 9001 : 2008 |
| Price : | $100 - $400 |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 1200 pieces every week |
| Delivery Time : | 15 - 30 workdays |

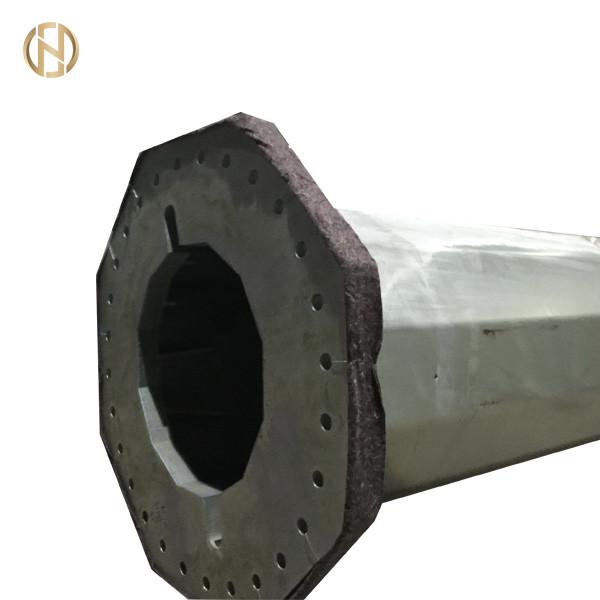

2-50M Hot Dip Galvanized Electric Power Pole, octagonal pole
Type | Customized electric steel pole hot dip galvanized steel pole | |||
Suit for | Electricity distribution | |||
Shape | Octagonal | |||
Material | Usually Q345B/A572,minimum yield strength>=345n/mm2 Q235B/A36,minimum yield strength>=235n/mm2 As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490 | |||
Power | 10 KV ~550 KV | |||
Design Load in Kg | 300~ 1000 Kg appliced to 50cm from the to pole | |||
Surface treatment | Hot dip galvanized Following ASTM A 123, color polyester power or
any other standard by client required. | |||
Joint of Poles | Insert mode,innerflange mode,face to face joint mode . | |||
Design of pole | Against earthquake of 8 grade | |||
Standard | ISO 9001 | |||
Welding | We has past flaw testing.Internal and external double welding makes
the welding beautiful in shape Welding Standard :AWS ( American Welding Society ) D 1.1 | |||
Thickness | 1 mm to 30 mm | |||
Product Description
Our electrical poles are specifically designed2-50M Hot Dip Galvanized Electric Power Pole ,octagonal pole, We have successfully delivered our products to satisfied customers all around the world including Southeast Asia, the Middle East, and Europe. In addition, we can produce various types of poles depending on its usage such as suspension, tension and terminal/dead angle poles.
Specifical Details
Product Name | Steel Power Pole |
|---|---|
Type | Suspension Pole, Tension Pole, Angle Pole, Termination Pole |
Height | 2m - 50m |
Thickness | 2.5mm - 20mm |
Shape | Polygonal or Conical |
Surface Treatment | Hot Dip Galvanized according to ASTM A123 standard or any other standards according to clients' request |
Color | Any, According to clients' request |
Ground Mounted | Anchor Bolt |
Voltage | 10kv - 500kv (10 |
Material | Q235, Q345, Q420, Q460, Gr 50, Gr60, SS400, etc. |
Welding | Welding complies with AWS D1.1 standard CO2 welding or Submerged Arc Auto methods No scarring, craters, spatters, distortions, defects of any kind due to welding errors Unique Internal and External Welding method that allows for a smoother surface Additional welding requirments can be made as per clients' request |
Life Expectancy | More than 25 years depending on various environmental factors |
Qualification | ISO9001-2015, AAA Credit Rating |
Wind Resistance | 120 km/h |
Earthquake Resistance | Against earthquake of grade 8 |
Additional Details
Design Code: American Standard ASCE/SEI 48-11
Design Software: PLS-POLES
Export Market Coverage: Asia-Pacific, Central & South America, Europe, Middle East, Africa
Testing Process: Loading Tests may be conducted on factory site if required
Process of Production
Verification of Materials → Cutting → Molding or Bending → Vertical Welding → Verification of Dimensions → Flange Welding → Hole Drilling→ Calibration → Deburring Process → Galvanizing, Powder Coating or Painting → Recalibration → Threading → Packaging
Product Details
Testing
Packaging & Shipping
We cover the top and bottom parts of the pole with a mat or straw bale in order to protect it from damage to the galvanized surface that may occur during transportation. Packaging can also be done according to clients’ requirements.
| MATERIALS LIST | ||||
| ITEM | STANDARD | minimum YIELD STRESS Fy (Mpa) | minimum TENSILE STRESS Fu (Mpa) | OBSERVATION t = thickness |
| Poles shaft and base plate and arms | EN 10.025 S355 J0 * | 355 345 335 325 | 470-630 470-630 470-630 470-630 | t = 16 16 < t = 40 40 < t = 63 63 < t = 80 |
| Anchor bolts | Cl 6-8 ISO 898 | 480 | 600 | |
(*) In accordance with NF A 35.503, Class 1 Chemical composition product analysis of Class 1 :
| Si | = | 0.030 | % |
| Si + 2.5 P | = | 0.090 | % |
|
|
