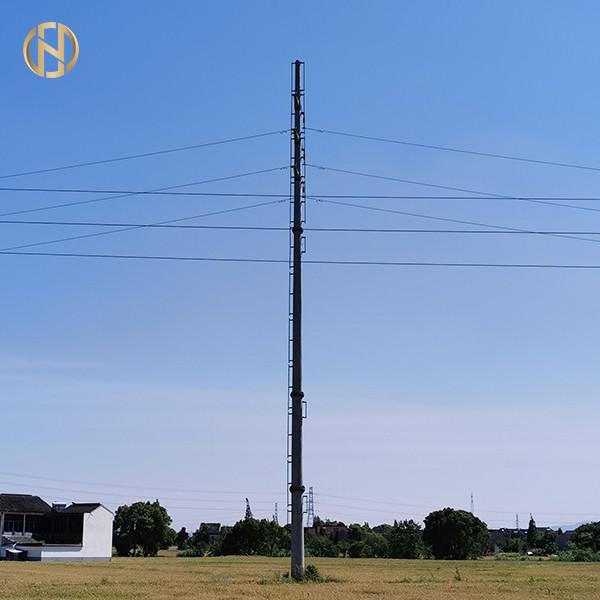

    40Ft Electric Steel Pole Polygonal By CNC Laser Cutting

    Ask Lasest Price
    Brand Name : Futao
    Model Number : 69kv
    Certification : ISO 9001 : 2008
    Price : $111 - $411
    Payment Terms : L/C, T/T
    Supply Ability : 1200 pieces every week
    Delivery Time : 15 - 30 workdays
    • Product Details
    • Company Profile

    40Ft Electric Steel Pole Polygonal By CNC Laser Cutting

    40Ft Electric Steel Pole Polygonal By CNC Laser Cutting

    Cutting
    Cutting the raw material that have meet all the standard required into different length and width. CNC laser cutting is used to direct the material or the laser beam generated. A typical commercial laser for cutting materials would involve a motion control system to follow a CNC or G-code of the pattern to be cut onto the material. The focused laser beam is directed at the material, which then either melts, burns, vaporizes away, or is blown away by a jet of gas, leaving an edge with a high-quality surface finish.
    Molding
    Forming the cut steel plate into the shape (circular or polygonal or other shape ) that as per specified in the drawing. This invention relates to forming devices and more particularly to devices or machines for bending longitudinally rolled sections or strips of metal stock to desired curvilinear shapes.

    Product Description


    Our electrical poles are specifically designed for 69kv 60ft 65ft 70ft 75ft 80ft electrical power pole electric utility pole suspension pole for phiippines market NGCP Client We have successfully delivered our products to satisfied customers all around the world including Southeast Asia, the Middle East, and Europe. In addition, we can produce various types of poles depending on its usage such as suspension, tension and terminal/dead angle poles.


    Specific Details


    Product Name

    69kv 60ft 65ft 70ft 75ft 80ft electrical power pole electric utility pole suspension pole for phiippines market

    Type

    Suspension Pole, Tension Pole, Angle Pole, Termination Pole

    Height

    2m - 50m

    Thickness

    4mm, 5mm ,6mm , 7mm, 8mm, 9mm , 10mm 11mm ,12mm

    Shape

    Polygonal or Conical

    Surface Treatment

    Hot Dip Galvanized according to ASTM A123 standard or any other standards according to clients' request

    Color

    Any, According to clients' request

    Ground Mounted

    Anchor Bolt

    Voltage

    69kv

    Material

    Q235, Q345, Q420, Q460, Gr 50, Gr65 ASTM 572 GR633 , Q460C

    Welding


    Welding complies with AWS D1.1 standard

    CO2 welding or Submerged Arc Auto methods

    No scarring, craters, spatters, distortions, defects of any kind due to welding errors

    Unique Internal and External Welding method that allows for a smoother surface

    Additional welding requirments can be made as per clients' request

    Life Expectancy

    More than 25 years depending on various environmental factors

    Qualification

    ISO9001-2015, AAA Credit Rating

    Wind Resistance

    160 km/h

    Earthquake Resistance

    Against earthquake of grade 8

    SIZE TEST


    Top Diameter (mm):252 / 252 / 254 / 254 (AVE = 253)248 - 260Passed
    Butt Diameter (mm):464 / 464 / 453 / 454 (AVE = 458.75)448 - 468
    Wall Thickness (mm):TS: 4.25 / 4.22 / 4.28 / 4.22 (AVE = 4.24)3.86 - 4.36
    BS: 4.15 / 4.12 / 4.18 / 4.2 (AVE = 4.16)
    Galvanized Coating Thickness (micron):TS: 111, 101, 106, 95, 99, 105, 91, 122, 109, 103, (AVE = 103.75)=> 85 MIN.
    BS: 126, 89, 74, 123, 94, 92, 96, 98, 103, 89, (AVE = 99)
    Total Assembly Length:2130021286 - 21394

    LOAD TEST


    Yield Strength, MPa740450 minPassed
    Tensile Strength, MPa800550 min
    Elongation, %2015% min
    C2. Chemical TestMeasuredStandardRemarks
    Carbon (C), %0.062 / 0.061 / 0.059 (AVE = 0.061)0.23 maxPassed
    Manganese (Mn), %1.39 / 1.38 / 1.4 (AVE = 1.39)0.5 - 1.65
    Phosphorus (P), %0.014 / 0.013 / 0.014 (AVE = 0.014)0.04 max
    Sulfur (S), %0.0047 / 0.0047 / 0.0047 (AVE = 0.005)0.05 max
    Silicon (Si), %0.152 / 0.148 / 0.151 (AVE = 0.151)0.04 - 0.06 / 0.12 - 0.25
    Copper (Cu), %0.211 / 0.212 / 0.209 (AVE = 0.211)0.20 min
    Nickel (Ni), %0.66 / 0.52 / 0.6 (AVE = 0.594)--
    Chromium (Cr), %0.031 / 0.031 / 0.031 (AVE = 0.031)--
    Niobium (Nb), %0.05 / 0.049 / 0.052 (AVE = 0.051)--
    Aluminum (Al), %0.036 / 0.036 / 0.036 (AVE = 0.036)--
    Columbium (Co), %0.004 / 0.0034 / 0.0034 (AVE = 0.004)--
    Vanadium (V), %0.0034 / 0.0029 / 0.0035 (AVE = 0.004)--
    Titanium (Ti), %0.023 / 0.023 / 0.023 (AVE = 0.023)--

    Additional Details


    Design Code: American Standard ASCE/SEI 48-11

    Design Software: PLS-POLES

    Export Market Coverage: Asia-Pacific, Central & South America, Europe, Middle East, Africa

    Testing Process: Loading Tests may be conducted on factory site if required


    Process of Production


    Verification of Materials → Cutting → Molding or Bending → Vertical Welding → Verification of Dimensions → Flange Welding → Hole Drilling→ Calibration → Deburring Process → Galvanizing, Powder Coating or Painting → Recalibration → Threading → Packaging

    Product Details



    Testing


    Packaging & Shipping


    We cover the top and bottom parts of the pole with a mat or straw bale in order to protect it from damage to the galvanized surface that may occur during transportation. Packaging can also be done according to clients’ requirements.

    Welcome to our factory!
