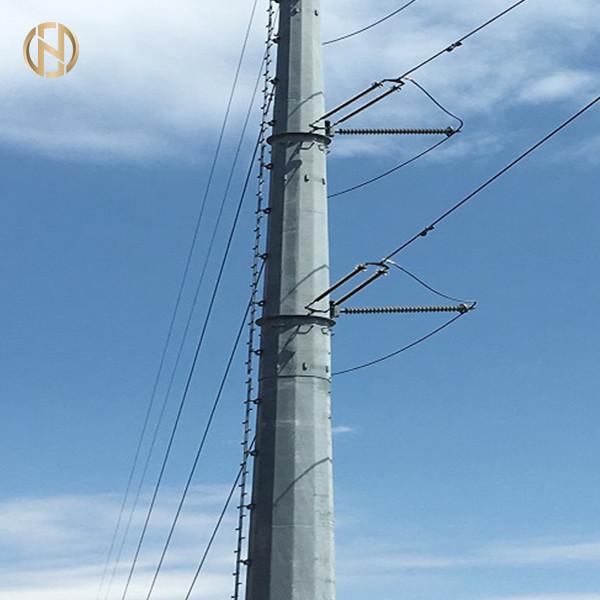

14m 800daN metal post electrical power pole for power distribution pole
* From raw material procurement, production, processing, testing
and sales
* Plastic spraying color can be customized
* High quality high strength carbon steel plate
* Adopts hot-dip zinc inside and outside surface anti-corrosion
treatment
* Accord with GB/T13912-92 standard, lifespan≥50 years
* Application:garden,courtyard,outdoor,etc
Product Description
Our electrical poles are specifically designed for 14m 800daN metal post ,electrical power pole for power distribution pole . We have successfully delivered our products to satisfied customers all around the world including Southeast Asia, the Middle East, and Europe. In addition, we can produce various types of poles depending on its usage such as suspension, tension and terminal/dead angle poles.
Specific Details
Product Name | 14m 800daN metal post ,electrical power pole for power distribution pole |
|---|---|
Type | Suspension Pole, Tension Pole, Angle Pole, Termination Pole |
Height | 14m-800daN |
Thickness | 3.5mm |
Shape | Polygonal or Conical |
Surface Treatment | Hot Dip Galvanized according to ASTM A123 standard or any other standards according to clients' request |
Color | Any, According to clients' request |
Ground Mounted | Anchor Bolt |
Voltage | 10kv -33KV |
Material | Q460, ASTM 572 GR65 |
Welding | Welding complies with AWS D1.1 standard CO2 welding or Submerged Arc Auto methods No scarring, craters, spatters, distortions, defects of any kind due to welding errors Unique Internal and External Welding method that allows for a smoother surface Additional welding requirments can be made as per clients' request |
Life Expectancy | More than 25 years depending on various environmental factors |
Qualification | ISO9001-2015, AAA Credit Rating |
Wind Resistance | 160 km/h |
Earthquake Resistance | Against earthquake of grade 8 |
Additional Details
Design Code: American Standard ASCE/SEI 48-11
Design Software: PLS-POLES
Export Market Coverage: Asia-Pacific, Central & South America, Europe, Middle East, Africa
Testing Process: Loading Tests may be conducted on factory site if required
Process of Production
Verification of Materials → Cutting → Molding or Bending → Vertical Welding → Verification of Dimensions → Flange Welding → Hole Drilling→ Calibration → Deburring Process → Galvanizing, Powder Coating or Painting → Recalibration → Threading → Packaging
Product Details
Packaging & Shipping
We cover the top and bottom parts of the pole with a mat or straw bale in order to protect it from damage to the galvanized surface that may occur during transportation. Packaging can also be done according to clients’ requirements.
| Q1. How can I get a price of needed pole? |
A: 1. Please provide exact dimensions such as height, pole shaft material type and thickness, top and bottom diameters. We can then give you an accurate quotation based on your specifications. 2. You can send us a detail and assembly drawing; we can then provide you with an accurate quotation based on the drawing. |
| Q2. I am a small wholesaler; do you accept a small order? |
| A: It's not a problem if you are a small wholesaler; we accept orders of various quantities. |
|
|
